How To Use Chemical Resistant Caulk In Industrial Facilities

Chemical resistant caulk seals the joints and cracks that ordinary sealants cannot survive. In a plant, a refinery, a containment area, or a food processing floor, the joint is usually the first thing to fail. Get the product choice and the joint geometry right and the seal outlasts the slab around it. Get either one wrong and you are re-doing the work inside a year.

A note on language first, because it trips people up. In industrial work, chemical resistant caulk is an umbrella term. It covers flexible sealants and semi-rigid joint fillers, and most products sold in this category are fillers rather than true caulks. Which of the two your joint needs is the first decision you make, and it is the one people get wrong most often.

What Chemical Resistant Caulk Actually Is

Chemical resistant caulk is a sealant or filler built to hold up under sustained contact with acids, solvents, and aggressive process fluids. Standard construction caulk softens, shrinks, or breaks down in that environment. A properly specified industrial product keeps its bond and its integrity.

What matters on site is the chemistry. The products Bowers Industrial carries are largely 100% solids epoxy, epoxy urethane, or fluoroelastomer systems, and that has real handling consequences:

• 100% solids means no shrinkage. There is no solvent leaving the joint as it cures, so the material you place is the material you keep.
• Two components mean a working time. Once resin and hardener are mixed, the clock is running. Mix only what you can place.
• Chemical immunity is formula-specific. Resistance to sulfuric acid does not imply resistance to a hot solvent. Confirm against your actual exposure list, not a general description of the area.

Filler Or Sealant: The Distinction That Decides Everything

This is the single most useful thing to get straight, and it is where most specification errors start.

A joint filler is semi-rigid. Its job is structural. It supports the edges of a concrete joint so that hard-wheeled traffic, forklifts, pallet jacks, and steel-wheeled carts cannot chip and erode them. Concrete industry standards, most notably ACI 302 (Guide to Concrete Floor and Slab Construction), require a concrete floor joint filler to have a minimum Shore A hardness of 80. Semi-rigid epoxy fillers meet or exceed that.

A joint sealant is elastomeric. Its job is to accommodate movement and keep liquid out. It gives the concrete edge no structural support at all.

Put a soft, flexible sealant into a traffic-bearing saw-cut joint and the wheel loads drive straight into the unsupported joint edges. They spall, then they shatter, and now you are looking at concrete patching and repair rather than a caulking job.

What Elongation Ratings Actually Mean

Data sheets publish tensile elongation, and it misleads people constantly. A high number does not mean the material will stretch that far inside your floor.

• A filler at Shore A 80 with a laboratory tensile elongation of 400% typically tolerates only about 5% to 15% lateral movement in a real joint before it splits or loses its bond to the concrete.
• A Shore A 80 epoxy rated at 25% elongation typically tolerates about 5% to 8% lateral movement.

The practical takeaway: a very high elongation figure buys you far less real-world movement capacity than it appears. Specify by joint type and hardness, not by the biggest number on the page.

Choosing The Right Product For The Joint

This is where most of the money is won or lost. Below is how the chemical resistant caulk line sorts out by application.

Confirm published hardness and movement figures on the current technical data sheet for the exact grade you are ordering. Formulations change, and the data sheet governs. Our product support team can pull the current sheet for any item here.

Before You Open Anything

Three checks, every time. They take a few minutes and they prevent the failures that cost real money.

Confirm The Concrete Is Ready

Concrete slabs shrink continuously as they dry, and that shrinkage widens joints over months. ACI 302 recommends delaying joint filling as long as the schedule allows so the slab completes as much of that shrinkage as possible. JOINTFILL 302 specifically requires new slabs to be at least three months old before installation, per ACI 302 Section 4.10.

Fill a green joint and the concrete keeps moving after your filler has hardened. The joint widens past the filler’s lateral capacity and the material tears away from the edge.

Confirm The Chemical Exposure

Write down what actually contacts the joint, including concentration and temperature, plus anything used for washdown or sanitation. Cleaning chemistry is frequently more aggressive than the process fluid, and it is the part people forget. Then confirm compatibility against that list. If the surrounding slab is also under attack, the joint is only part of the problem and you should be looking at industrial floor coatings at the same time.

Confirm The Joint Geometry

Check depth, width, and condition. Damaged or spalled joint edges need patching and repair before filling. As a structural rule, a saw-cut control joint should penetrate to a minimum of one quarter of the slab thickness, so a 6-inch slab takes a cut of about 1.5 inches. Joints should be clean to full depth so the filler bears on sound concrete rather than debris.

Applying Chemical Resistant Caulk

1. Prepare The Joint

Remove all dust, dirt, debris, old sealant, laitance, and curing compound. Mechanical cleaning or re-sawing gives the best result on existing joints. The surface must be structurally sound, free of contaminants and loosely adhering concrete. Unless you are using a moisture insensitive product such as JOINTFILL 302, the joint must be dry.

For bonded protective coating and lining work, concrete surface preparation is covered by the jointly issued standard SSPC-SP 13 / NACE No. 6, Surface Preparation of Concrete, now maintained by AMPP. If your specification references it, work to it.

2. Mix The Components

For two-component products this step decides whether the material cures correctly. Mix the full unit at the ratio on the data sheet. Do not split kits by eye. Use a slow-speed mechanical mixer, scrape the sides and bottom of the container, and mix until the color is completely uniform. Under-mixing leaves soft spots that never fully cure.

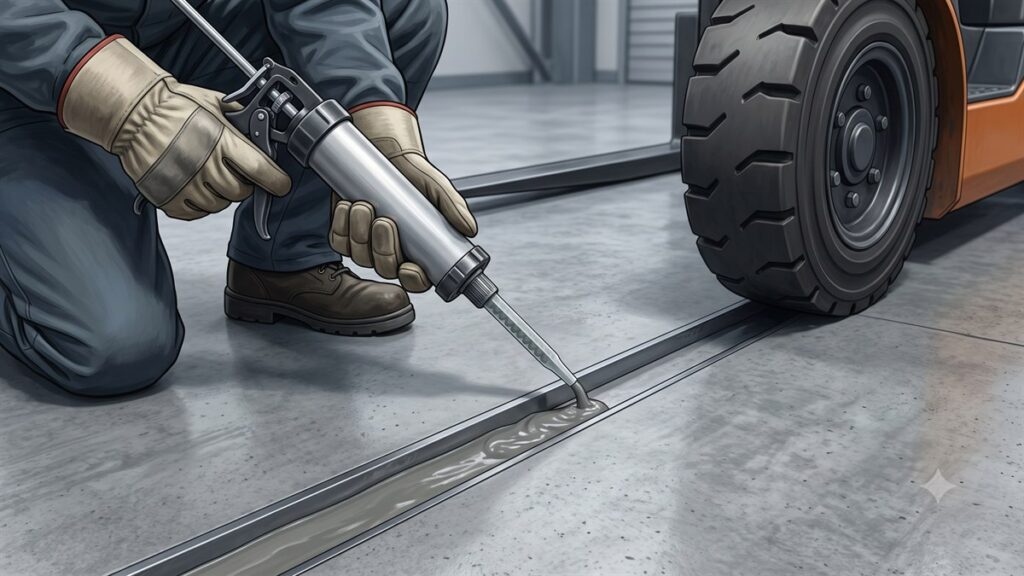

3. Place The Material

Fill from the bottom up so no air is trapped, and fill full depth. Self-leveling grades find their own surface on horizontal work. Gel grades hold position on vertical joints and are the right pick where the material would otherwise run. Overfill slightly, since most fillers are shaved flush after cure rather than tooled soft.

Single-component products such as Fluorodyn handle more conventionally. Cut the nozzle to your bead size, break the inner seal, and run a continuous bead with steady pressure. Fluorodyn is supplied from 2.5 oz tubes through pints, quarts, gallons, 5-gallon pails, and 55-gallon drums, so match the container to the scale of the work.

4. Finish The Surface

Rigid joint fillers get shaved flush with the floor once cured, which is what gives you the flat, cleanable, load-bearing surface the joint is there to provide. Flexible sealants in moving joints get tooled while still workable.

5. Clean Up Immediately

Cured epoxy is extremely difficult to remove. Clean tools and overspill while the material is still wet.

6. Cure Before Exposure

Let the product reach full cure before you put chemicals, traffic, or washdown on it. Cure times vary by product, temperature, and humidity, so follow the data sheet for the specific material rather than a general rule. Early exposure is the most frequent cause of a seal that fails long before it should.

Temperature, Cold Storage, And High Heat

Temperature drives both what you can install and what the finished joint will survive.

Substrate and ambient temperature affect working time and cure on every two-component system. Cold slows cure. Heat shortens your working window. Each product has its own installation temperature range, and the data sheet is the authority, not a general rule of thumb.

At the high end, fluoroelastomer products give you the widest service window in this category. Viton-based caulks withstand temperature extremes from -40 F to +400 F (-40 C to +205 C) while resisting hundreds of corrosive chemicals, which is why they show up in flange sealing and containment rather than general floor work.

Freezer and cold storage floors are a special case. Installing joint filler in a sub-freezing space is a different specification problem from installing in a warm plant, and standard epoxy systems are not always the right answer at those temperatures. If you are filling joints in a freezer, a cooler, or an unheated building in winter, talk it through with us before ordering rather than assuming a product will cure.

When Separation Is Normal And When It Is A Failure

A hairline gap opening between filler and concrete edge prompts one of the most common calls a supplier gets, and it is usually not a product defect.

Concrete keeps shrinking. As it does, the joint widens. Because a semi-rigid filler only accommodates a few percent of lateral movement, the joint can widen past that capacity and the filler separates cleanly from one edge. This is a consequence of the slab, not a failure of the chemistry, and it is far more likely when the joint was filled early in the construction schedule.

• Minor separation, roughly the thickness of a credit card, generally does not compromise load transfer. The filler is still supporting the joint edges.
• Larger voids should be repaired. Vacuum out debris, then gravity feed a low-viscosity epoxy or additional joint filler into the gap.
• Repeat failure in the same joint is a different problem. That points to movement, contamination, moisture, or chemical attack rather than shrinkage, and it needs diagnosis before refilling.

Safety And Site Practice

• Read the safety data sheet for both components. Resin and hardener carry different hazards, and epoxy hardeners are typically the more aggressive of the two.
• Wear the right PPE. Chemical resistant gloves, splash-rated eye protection, and covered skin at minimum. Add respiratory protection where ventilation is limited or the SDS calls for it.
• Ventilate the work area, during application and during solvent cleanup.
• Treat confined spaces as confined spaces. Containment pits, sumps, and tank interiors need your standard permit-required entry procedure. Do not let the size of the caulking job talk anyone out of it.
• Watch dust during prep. Mechanical joint cleaning generates respirable crystalline silica. Use your standard silica controls.

Storage And Shelf Life

Store product in a conditioned space. CF-621 has a shelf life in excess of 12 months when stored between 50 F and 90 F. Date your inventory and use the oldest stock first. Material that has frozen, separated, or crystallized should be evaluated before use rather than mixed and hoped for.

When To Ask Before You Buy

Call rather than guess if any of the following is true:

• The joint moves and you are not certain whether it is a control, expansion, isolation, or construction joint.
• Your chemical exposure includes strong acids, hot solvents, or a mixed stream.
• The work is in a freezer, cooler, or unheated space in winter.
• The joint is outdoors or subject to significant thermal cycling.
• You are sealing flanges or lining pipe rather than filling a floor joint.
• The slab is newer than three months.
• The previous sealant failed and nobody has established why.

That last one matters more than it seems. A joint that has failed once will usually fail again in the same way unless the cause is identified. Movement, contamination, moisture, and chemical attack each leave a different signature and each points to a different fix.
